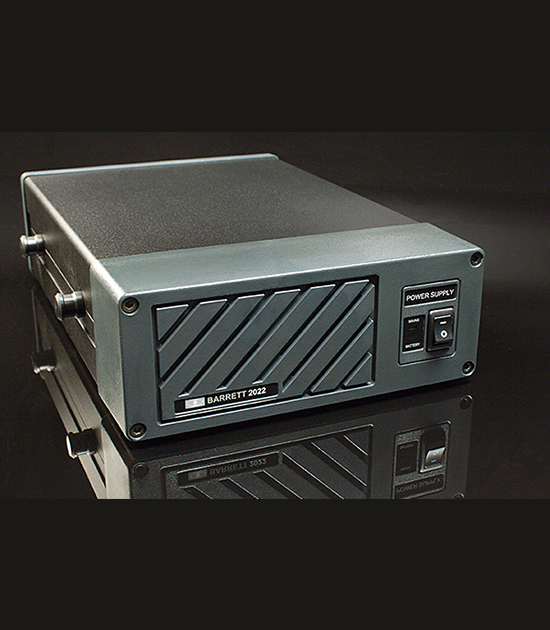

2022 Mains Power Supply
The Barrett 2022 is a 13.8 V DC regulated, 21 Amp power supply capable of operating on AC input voltages from 88 VAC to 264 VAC without input voltage switching.
It is designed to power the Barrett 2000 series of HF transceivers and accessories.
The 2022 power supply incorporates loudspeakers that connect to 2000 series transceivers via the power cable when used in a base station configuration. The 2022 has a battery standby system comprising a charging circuit with a true automatic no-break changeover, in case of mains power supply failure.
It is designed to power the Barrett 2000 series of HF transceivers and accessories.
The 2022 power supply incorporates loudspeakers that connect to 2000 series transceivers via the power cable when used in a base station configuration. The 2022 has a battery standby system comprising a charging circuit with a true automatic no-break changeover, in case of mains power supply failure.
Manufacturer: Barrett Communications
Category:
Barrett Communications
The Barrett 2022 is a 13.8 V DC regulated, 21 Amp power supply capable of operating on AC input voltages from 88 VAC to 264 VAC without input voltage switching. It is designed to power the Barrett 2000 series of HF transceivers and accessories.
The 2022 power supply incorporates loudspeakers that connect to 2000 series transceivers via the power cable when used in a base station configuration. The 2022 has a battery standby system comprising a charging circuit with a true automatic no-break changeover, in case of mains power supply failure.
FEATURES
100% DUTY CYCLE
The power supply is provided with an internal fan allowing operation at a 100% duty cycle for data applications.
INTERNATIONAL AC SUPPLY COMPATIBILITY
The 2022 power supply is supplied with four IEC cord sets that will suit most mains power outlets used throughout the world.
RACK MOUNTABLE

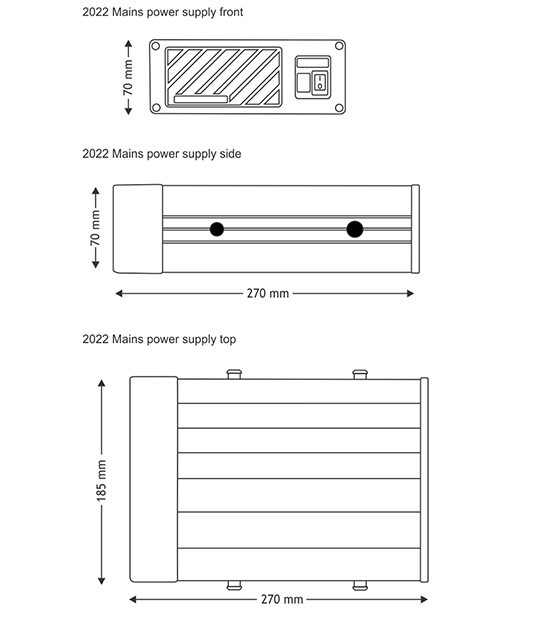

The 2022 is rack mountable in standard Barrett 2U rack mount kits
AUXILIARY CONNECTOR FOR ACCESSORIES
The 2022 has an auxiliary connector to power other 2000 series accessories.
NO-BREAK BATTERY BACKUP
The 2022 has a battery standby system comprising a charging circuit with a true automatic no-break changeover, in case of mains power supply failure.
