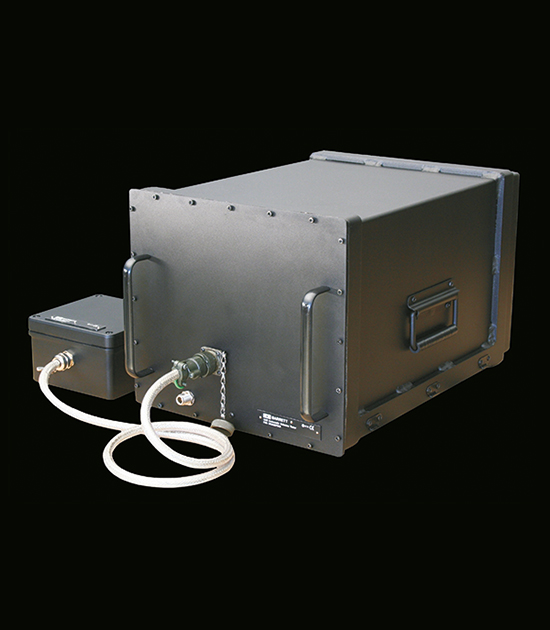

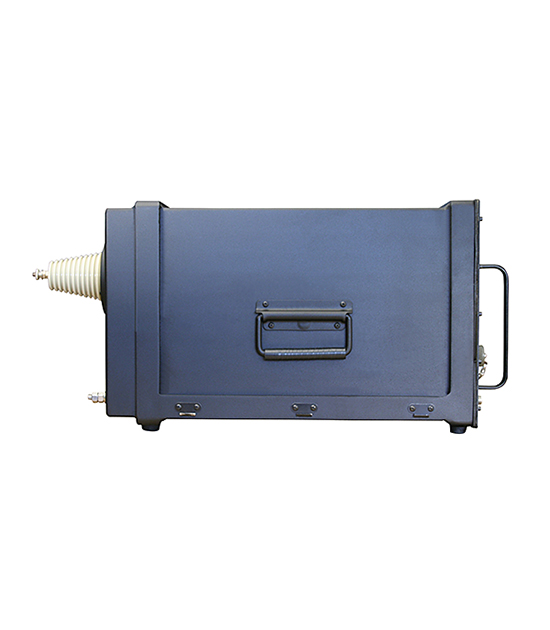

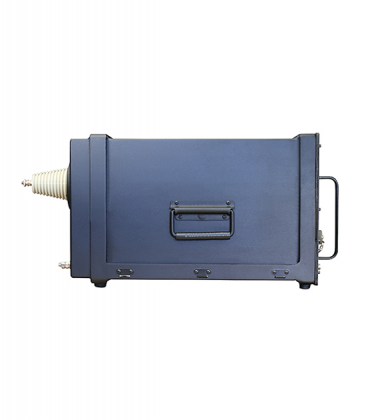

1kW Automatic Antenna Tuner
The Barrett 1 kW ATU automatically matches the 50 ohm output of the 2075 high power transmitters to a wide variety of end-fed unbalanced antennas such as whips and long wires.
The Barrett 1 kW ATU has a 100-channel memory that allows “silent tuning” on channels previously tuned in less than 20 mS. The tuner can provide tactical security by permitting remote location of the antenna tuner and antenna up to 30 metres from the associated transmitter.
The Barrett 1 kW ATU has a 100-channel memory that allows “silent tuning” on channels previously tuned in less than 20 mS. The tuner can provide tactical security by permitting remote location of the antenna tuner and antenna up to 30 metres from the associated transmitter.
Manufacturer: Barrett Communications
Category:
Barrett Communications
The Barrett 1 kW ATU automatically matches the 50-ohm output of the 2075 high power transmitters to a wide variety of end-fed unbalanced antennas such as whips and long wires. The Barrett 1 kW ATU has a 100-channel memory that allows “silent tuning” on channels previously tuned in less than 20 mS. The tuner can provide tactical security by permitting remote location of the antenna tuner and antenna up to 30 meters from the associated transmitter.
FEATURES
IMMERSIBLE TO 1 M
2075 1 kW automatic antenna tuner is fully waterproof and can be immersed to 1 m.
OPTO-COUPLED INTERFACE
An optocoupler interface is supplied to provide high RF interference immunity on long control cable runs.
FULL HF FREQUENCY RANGE
The 1 kW automatic antenna tuner operates from 1.6 to 30 MHz.
RAPID TUNE TIME
Typically 3 to 5 seconds on the initial tune and less than 20 mS on memory tunes.
ALE COMPATIBLE
The memory tune system is fully compatible when operating ALE to MIL-STD 188-141B.
100% DUTY CYCLE
Operates at 1000 Watts PEP or average at 100% duty cycle.
