BC90205 - aluminium mast with nylon guys for ground mounting
10 metre Air transportable five section lightweight aluminium mast with nylon guys for ground mounting

Suitable for rapid deployment of Barrett 912 125 W PEP broadband antennas or 915 series wire dipoles.

The mast consists of 5 x 2 m aluminium sections inserted on top of each other with a 1.5 m antenna support outrigger on the top section.

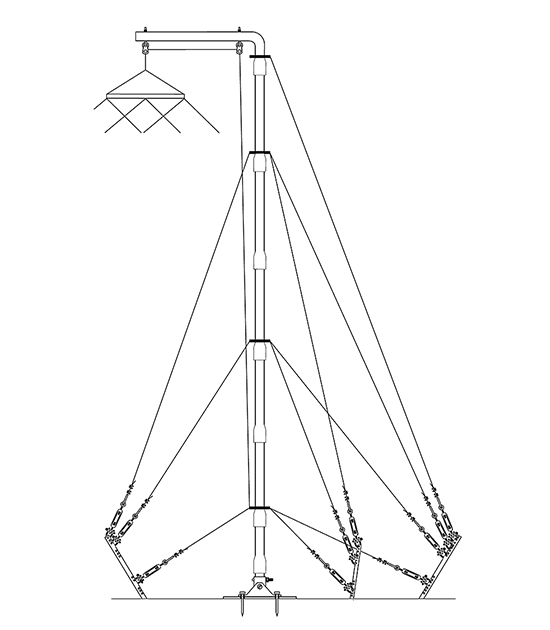

There are 2 sets of 3 rope guys. Erection of the mast is possible utilising two persons. Once all sections are assembled, as per the diagram below, and the pegs and base plate have been positioned, simply lift the mast into position and tie off the guy ropes.

BC90206 - aluminium mast and stainless steel fittings for ground mounting
10 metre Air transportable five section lightweight aluminium mast and stainless steel fittings for ground mounting

Suitable for rapid deployment of Barrett 912 125 W PEP broadband antennas or 915 series wire dipoles.

The mast consists of 5 x 2 m aluminium sections inserted on top of each other with a 90-degree top section outrigger.

There are 2 sets of 3 wire guys and one backstay wire to counter the weight of the antenna. Erection of the mast is possible utilising two persons. Once all sections are assembled, as per the diagram below, and the pegs and base plate have been positioned, simply lift the mast into position and tighten the guy wires.

BC90207 - aluminium mast and stainless steel fittings for roof mounting
10 metre Air transportable five section lightweight aluminium mast with roof mounting kit and stainless steel fittings for roof mounting

Suitable for rapid deployment of Barrett 912 125 W PEP broadband antennas or 915 series wire dipoles.

The mast consists of 5 x 2 m aluminium sections inserted on top of each other with a 90-degree top section outrigger.

There are 2 sets of 3 wire guys and one backstay wire to counter the weight of the antenna. Erection of the mast is possible utilising two persons. Once all sections are assembled, as per the diagram below, and the cleats and base plate have been positioned, simply lift the mast into position and tighten the guy wires.

BC90209 - aluminium mast with nylon guys for ground mounting
6 metre Air transportable lightweight aluminium mast with nylon guys for ground mounting

Suitable for use with the Barrett 2017Automatic tuning horizontal dipole antenna. The mast consists of 4 aluminium sections inserted on top of each other.

There are 2 sets of 3 rope guys. Erection of the mast is possible utilizing two persons. Once all sections are assembled, as per the diagram below, and the pegs and base plate have been positioned, and the antenna fitted, simply lift the mast into position and tie off the guy ropes.
