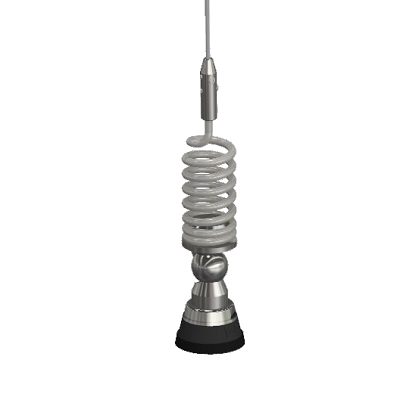

The ZARA130 is a base loaded, 5/8 wavelength mobile antennas with a SS shock spring.

Designed for mounting from the outside of the vehicle body.

The whips can be mounted in an upright position regardless of the mounting angle of the base.

Antennas supplied with 4 m RG-58 coaxial cable as standard, other lengths available on request.

Electrical Data

Frequency: 138…174 MHz

Nominal Gain: 2 dBq (rel. λ/4-wave)

Bandwidth VSWR: <1,5:1 ≥ 3 MHz

VSWR: < 1,5:1

Radiation Pattern: Omni-directional

Polarisation: Vertical

Rated Power: 100 W

Impedance: 50 Ω

Termination: 4 m RG-58, no connector

Mechanical Data

Max. wind velocity: 220 km/h

Whip Tapered: 17 – 7PH SS

Mounting Hole: Size 19 mm

Adjustment: 180º

Colour: Silver and Black

Dims: 1510 mm 830 mm

Shipping Dims: 0.4 kg / 150 cm x 11 cm x 5 cm
