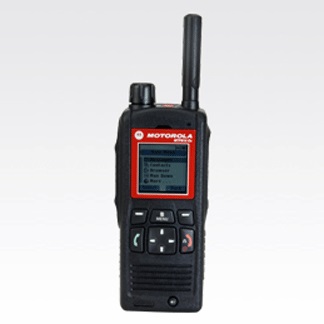

MTP810EX TETRA
The MTP810Ex TETRA portable terminal provides high quality communication with comprehensive user safety and class leading ATEX specifications allowing use when in environments containing potentially explosive gas and dust. Motorola is a world leader in the development and deployment of TETRA communication solutions, and the MTP810Ex ATEX TETRA radio delivers safe and reliable communications for users with a powerful set of features to harness the capability of TETRA.
The MTP810Ex TETRA portable terminal provides high quality communication with comprehensive user safety and class leading ATEX specifications allowing use when in environments containing potentially explosive gas and dust. Motorola is a world leader in the development and deployment of TETRA communication solutions, and the MTP810Ex ATEX TETRA radio delivers safe and reliable communications for users with a powerful set of features to harness the capability of TETRA.
Physical Characteristics
-
Dimensions H x W x D (with standard battery)
135 x 55 x 38 mm
-
Weight
400 g (including battery, antenna)
Performance Characteristics
-
Battery capacity
725 mAh, 7.2V
-
Battery life - standard (based on a 05 05 90 duty cycle)
12 hrs, typ
-
Frequency bands
380 – 430 MHz
-
Channel spacing
25
-
Power
1W
-
RF power control
3 steps of 5 dB
-
OTAR
Yes
Radio Features
-
Switching bandwidth
50 MHz
-
RF power level accuracy
+/- db 2
-
Receiver class
A & B
-
Receiver static sensitivity
-112 minimum, -115 typical
-
Receiver dynamic sensitivity
-103 minimum, -107 typical
-
Scan types
Talkgroup
User Environment
-
ATEX gas specifications
II 2G Ex ib IIA T3, IEC Ex rating, Ex ib IIC T4
-
ATEX dust specifications
II 3D Ex ibD 21 IP5x T90oC, Ex ibD 22 IP5x ib D21 T90oC (Approved for Zone 22, Equipment Group II)
-
Operating temperature
"-20°C to +50°C (Hazardous environments)
-20°C to +60°C (Non-hazardous environments)" -
Storage temperature
-40°C to +85°C
-
Humidity
ETS 300 019-1-5 Class 5.1 and 5.2
-
Dust and water
IP65 per IEC 60529
-
Shock, drop and vibration
ETS 300 019-1-5 Class 5M2
-
IP Standards
IP65
Voice Services
-
Talkgroups
2048 (TMO) & 1024 (DMO)
-
Phone book
1000 entries
-
Scan lists
40 lists, 20 talkgroups / lists
-
Ambience listening
Yes
-
Transmit inhibit
Yes
TMO Services
-
Group call
Late entry
-
Private call
Half / full duplex
-
Telephony
Full duplex
-
DGNA
Up to 2047 groups
DMO Services
-
Compatibility with
Gateway and repeater
Emergency Voice Services
-
Smart emergency
DMO / TMO / DMO to TMO
-
Hot mic
Configurable timers
-
Location
Send on emergency
-
Alarm
Emergency status
Data Services
-
Status messaging
100 alias messages
-
Short data service (SDS)
20 message inbox, individual or group addresses, send/receive during calls
-
Packet data (PD)
7.2kbps - 28.8 kbps gross (single or mutli-slot)
-
Browser
Integrated Openwave browser
-
PEI
AT commands
Security Features
-
Air interface encryption algorithms
TEA1, TEA2, TEA3
-
Air interface encryption security classes
Class1 (clear), Class2 (SCK), Class3 (DCK, CCK & GCK)
-
Key provisioning
"Secure provisioning tool (key variable loader KVL)
Over the Air Re-keying (OTAR) for SCK and Class 3 (CCK & GCK)" -
Network access
Temporary enable disable (Stun), Permanent enable disable (Kill)
-
Authentication
Infrastructure initiated and made mutual by terminal
GPS Specifications
-
Simultaneous satellites
12
-
Mode of operation
Autonomous or assisted (A-GPS)
-
GPS antenna
Integrated in TETRA antenna
-
GPS sensitivity
-152 dBm / -182 dBw
-
GPS accuracy
5 meter (50% probable)
-
Location protocols
ETSI LIP, Motorola LRRP
