MT480

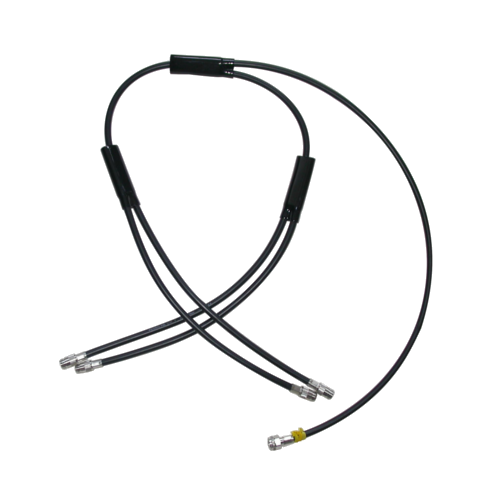

- These harnesses are used to couple four antennas together so they are fed in phase for a low SWR and minimum insertion loss.
- Higher gain or a special shape radiation pattern is achieved. ; When the number of antennas in a collinear array is quadrupled, the gain increases by about six decibel (6 dB).
- The branches of the harness are impedance transforming sections and must not be shortened.
- Extra jumper cable sections may be necessary to reach each antenna. Such sections must be made exactly equal length so that the antennas are fed in phase.
- The branches are terminated with type N-female connectors and the feeder end with type N-female connector.
- The harnesses are fully waterproof.
