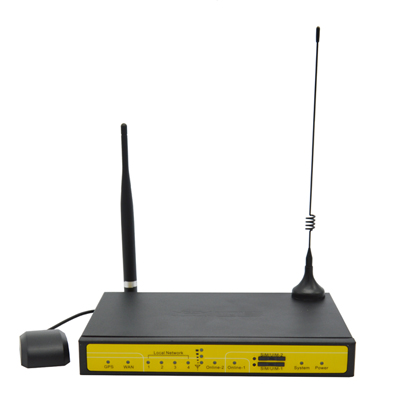

F7446 3G GPS Dual Sim Wireless Router WCDMA
Support VPN link, the increase on the basis of the common VPN PPTP server, the L2TP server, OpenVPN server, OpenVPN client support, network security applications deployment options richer, more flexible
Manufacturer: Four Faith
Category:
Industrial Routers
- ● Support GPS Positioning Function
- ● WCDMA/UTMS/HSDPA/HSUPA/HSPA+
- ● Samart Link Switch Backup
- ● Powerful WIFI
- ● Provide More Security Deployment Scenarios
- ● Reliable Networking And Communication
- ● Support APN/VPDN
- ● Convenient configuration and maintenance interface
- ● Support Local and Remote Firmware Upgrade
Smart Link Switch Backup
Provide multiple communication link backup functions: total 3 ways backup (2 ways wireless and 1 way wired), one primary and one backup primary and secondary backup, dual-link peer backup. When a link is blind, fluctuate, or even interrupt, switches to the other communication link quickly and automatically to ensure stable communication.
Provide More Security Deployment Scenarios
Support VPN link, the increase on the basis of the common VPN PPTP server, the L2TP server, OpenVPN server, OpenVPN client support, network security applications deployment options richer, more flexible
Reliable Networking And Communication
Using high-performance industrial-grade wireless module, industrial grade high stability and high precision components, -35 ~ +75 º C extremely wide temperature design, adapt to high-low temperature working environment and provide reliable networking and stable communication to unattended systems
Cellular Specification
|
Item |
Content |
|
Cellular Module |
Industrial cellular module |
|
Standard and Band |
UMTS/WCDMA/HSDPA/HSUPA/HSPA+ 850/1900/2100MHz, 850/900/1900/2100MHz(optional) |
|
Bandwidth |
DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps |
|
TX power |
<24dBm |
|
RX sensitivity |
<-109dBm |
GPS Specification
|
Item |
Content |
|
GPS Module |
Industrial GPS module |
|
Receiver Type |
50-channel |
|
Max. update rate |
4 Hz |
|
Accuracy |
Position: 2.5m CPE |
|
Acquisition |
Cold starts: 29S |
|
Sensitivity |
Tracking: -160dBm |
|
Timing accuracy |
RMS: 30ns |
|
Time pulse |
Configurable, 0.25 to 1000Hz |
WIFI Specification
|
Item |
Content |
|
Standard |
IEEE802.11b/g/n |
|
Bandwidth |
IEEE802.11b/g: 54Mbps (max) |
|
Security |
WEP, WPA, WPA2, etc |
|
TX power |
20dBm(11n),24dBm(11g),26dBm(11b) |
|
RX sensitivity |
<-72dBm@54Mpbs |
Hardware System
|
Item |
Content |
|
CPU |
Industrial 32bits CPU |
|
FLASH |
16MB(Extendable to 64MB) |
|
DDR2 |
128MB |

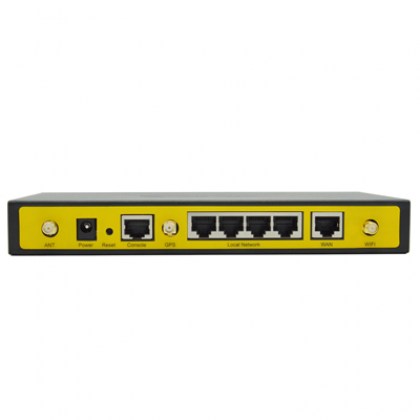

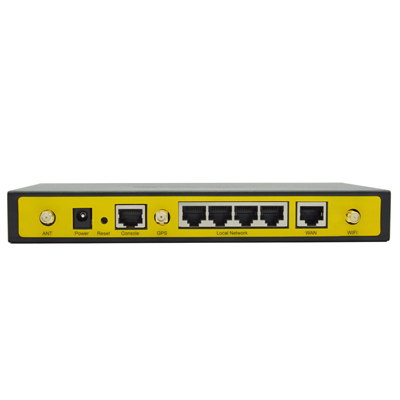

Interface type
|
Item |
Content |
|
WAN |
1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
|
LAN |
4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
|
Serial |
1 RS232(or RS485/RS422) port, 15KV ESD protection |
|
Indicator |

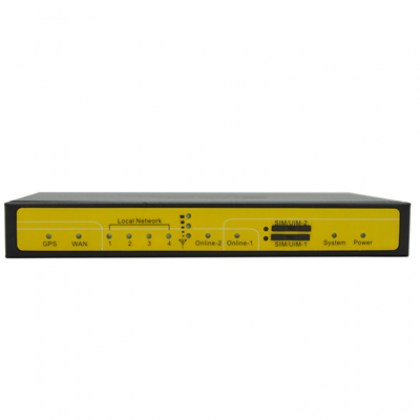

"Power", "System", "Online-1", "Online-2", " Local Network ", "WAN", "GPS", "Signal Strength" |
|
Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional) |
|
SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
|
Power |
Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
|
Reset |
Restore the router to its original factory default settings |
Power supply
|
Item |
Content |
|
Standard Power |
DC 12V/1.5A |
|
Power range |
DC 5~36V |
Consumption
|
Working condition |
Consumption |
|
Standby |
284~307mA@12VDC |
|
Communication |
313~390mA@12VDC |
|
Schedule Shutdown |
2.57~4.2mA@12DVC |
Physical Characteristics
|
Item |
Content |
|
Housing |
Iron, providing IP30 protection |
|
Dimensions |
207x135x28 mm |
|
Weight |
790g |
Environmental Limits
|
Item |
Content |
|
Operating Temperature |
-35~+75ºC(-31~+167℉) |
|
Storage Temperature |
-40~+85ºC (-40~+185℉) |
|
Operating Humidity |
95% (unfreezing) |
